The Taurus 400 series is a set advanced high voltage, high power, extremely efficient BLDC motor controllers. Because each advanced vehicle has unique requirements, Taurus 400 solutions are customized for each end user. Due to the complex needs of high power vehicles, these controllers utilize Silicon Carbide FETs which enable advanced power switching technology.
Contact our top notch sales team to get all of your questions answered promptly!
Overview
The Taurus 400 series implements full four quadrant Field Oriented Control (FOC) through Space Vector Pulse Width Modulation (SVPWM) to achieve exceptional motor controller efficiency in the nominal operating range. The controller also supports overmodulation to maximize peak power output of the motor drive. The Taurus 400 is designed for the following key performance capabilities:
*With adequate cooling.
The Taurus 400 series supports various hardware interfaces for communication as well as commutation and alignment support. These interfaces can be used for simple comms, or configurations with pitch control servos, etc. The entire software stack for the Taurus is built on the available source licensed allocore SDK, allowing fully tailored applications for customer control, comms, and other needs.
Four quadrant control around a 40KHz current control loop allows custom fast closed-loop control on speed, torque, voltage, power, or other more advanced modes.
Fixed mapping sensorless open-loop PWM throttle based ESCs are a thing of the past. The Taurus motor controller enables customized control loops and tuning, along with bi-directional communications to give your system more advanced control and monitoring. Taurus adds in sensored motor capabilities for slow-speed and alignment/parking support.
Four quadrant control means Taurus 400 controllers support full regen capabilities. Not only does this mean active regenerative braking, but moreover, the Taurus 400 can be mated with a generator system to provide the basis of a hybrid electric powertrain.

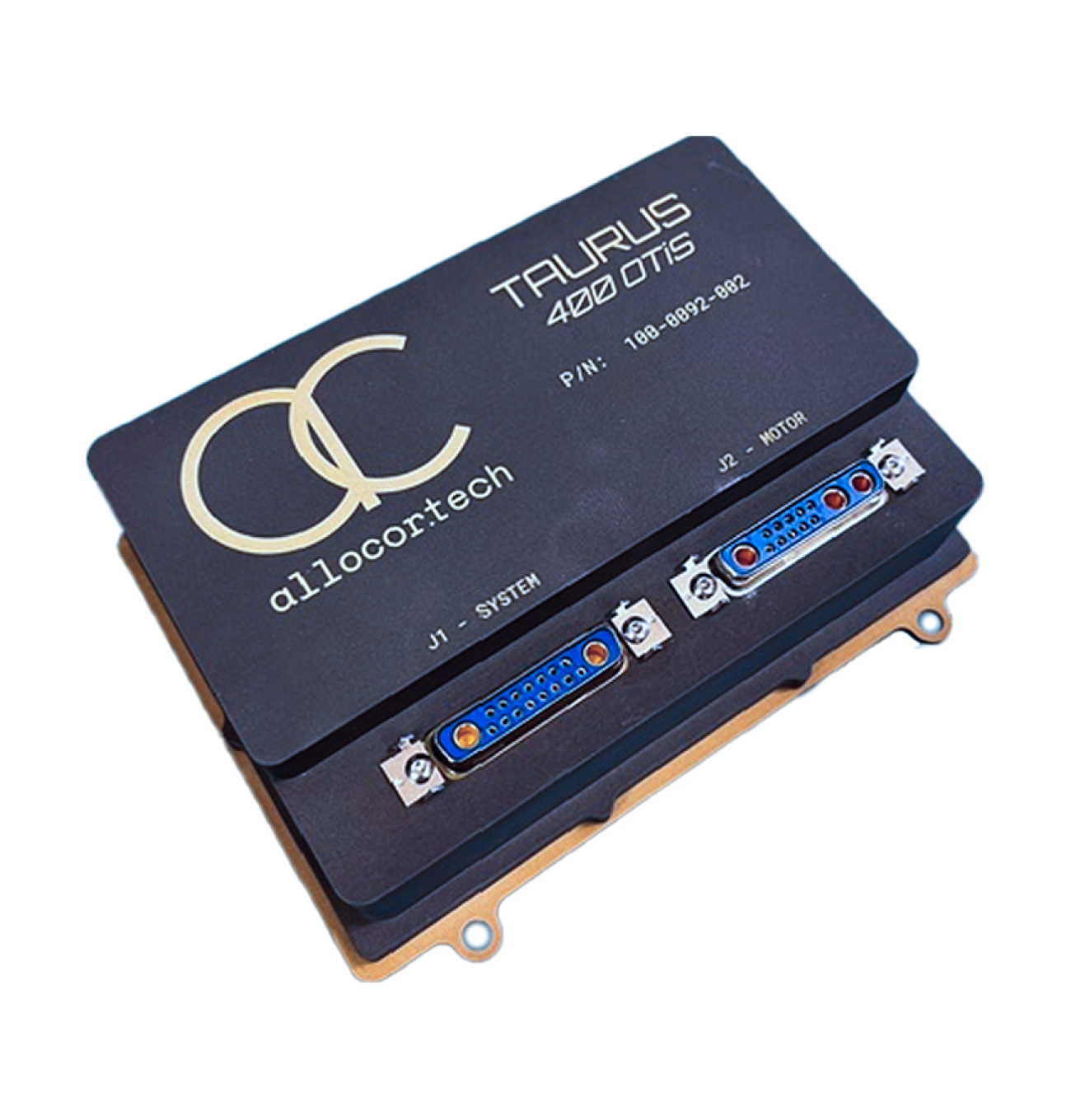

The Taurus 400 OTiS is our OTS version of the Taurus 400 MC. Taurus 400 hardware IP can be tailored to fit into customer designated spaces such as winglets, booms, motor housings, etc. Additionally, implementations for lower voltage/power have also been realized. Please contact us to get more information on how we can customize a Taurus 400 for your electric or hybrid electric powered vehicle.
PERFORMANCE SPECIFICATIONS
80V – 405V
80A Peak
50A Continuous
40kHz Control
10,000RPM
12,000RPM
17,000RPM
Up to 1kHz
Communication
815g
Serial ports offer ±400V isolation voltage (when connected using the supplied floating-ground pin)
Physical
815g
164mm x 132mm x 42mm
Document Number and Reference Title
Allocortech can quickly provide low-cost custom hardware designs, customized versions of existing products, and integrate new hardware into existing designs. Where needed, requirements, test cases, simulators, and hardware-in-the-loop environments can be created.
