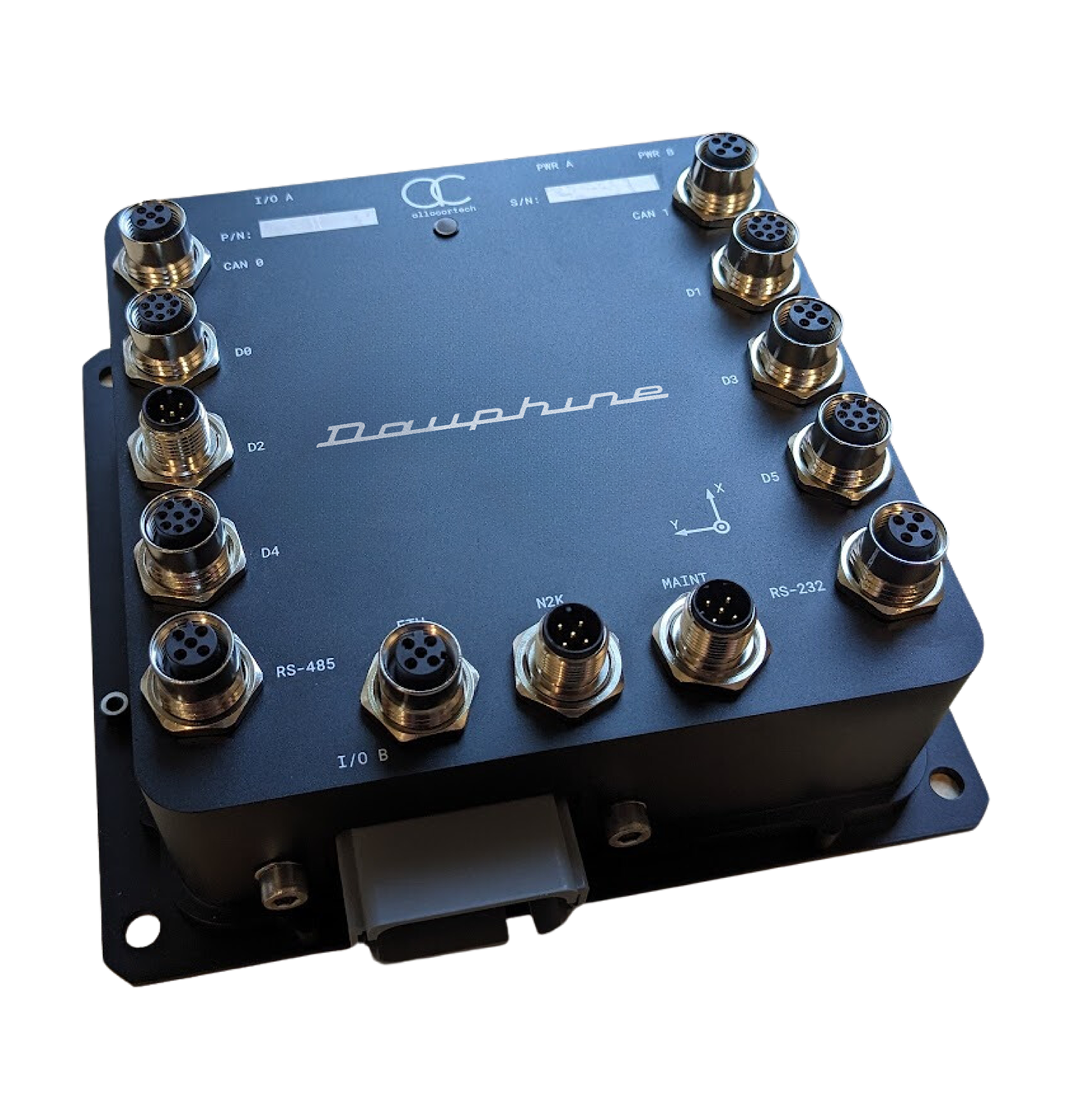

The Dauphine is a computation, communications, and power distribution platform developed from our Clio B product and specifically designed to function in a maritime environment.
Dauphine has the computing power to be anything from a simple data switch and power hub to a robust navigation computer. Built-in functionality enables seamless connectivity between point-to-point and redundant ring networks making Dauphine ideal for platforms needing configurable smart hubs.
Furthermore, an expansion slot provides end users the option of adding navigation sensors to unlock autonomous mission planning and control.
Contact our top notch sales team to get all of your questions answered promptly!
Overview
Dauphine is outfitted with a variety of serial communication protocols such as RS-485, RS-232, 5VVTL, CAN-FD, and 10/100 switched Ethernet port in a variety of mappings. It also has General Purpose Input/Output (GPIO) ports that can be used as a remote control receiver and for Pulse wave modulation (PWM).
Dauphine features 4 independent power inputs, each with fault detection and feedback prevention. These power inputs can be fed to 3 independent (but tie-able) power distribution busses, one of which can be powered from an internal, adjustable 3.5A power supply for maximum flexibility.
Safe operation of Dauphine is assured by a comprehensive set of voltage taps, as well as high and low side current measurements on both the inputs and outputs.
Compute Complex
STMicro STM32H743
400MHz ARM Cortex M-7 with Double Precision Floating Point Unit
2MB Internal Flash
1MB Internal RAM
Xilinx S725 or S750 FPGA
Attached over 8 bit parallel bus
Custom daughter cards with navigation sensors are supported via UART and SPI
Communication
15x Half Duplex RS-485
10x CAN-FD
1x RS-232
1x 5V Invertible TTL
Ports support a variety of fixed or programmable hardware termination, and fixed or programmable duplex control.
2 external 10/100 ports from an internal managed Ethernet switch. Switch supports Auto-MDIX, VLANs, QoS, Rate Limiting, IGMP Snooping,
IEEE 1588v2, and Cable Diagnostics.
3x Isolated 50V/3A Solid State Relay Outputs
2x Isolated 50V/3mA Max Constant Current Inputs
11x 3.3V PWM or GPIO
2x differential inputs with programmable gain
Voltage or Current Mode, Monitored by FPGA with Programmable Reaction
Physical
1000g
Length: 181 mm
Width: 140 mm
Height: 69 mm
4x 0.22″ diameter mounting holes
For enhanced bonding between the Dauphine Unit and vehicle chassis, a M3 bonding stud can be installed in the baseplate with a countersunk M3 screw with the intent of allowing a low resistance connection.
Power
12 ~ 24V typical
38V max
3.5 Watts typical
3A Buck SMPS, Voltage controlled by processor (can feed 2 outputs)11x 6A switched and e-fused outputs4x 0.22″ diameter mounting holes
Power is distributed on 3 internal power rails that can optionally be diode OR’d together.
Environmental
IP67
Operating: -40 to +70°C
Storage: -50 to +85°C
DO-160G Category R
-5k ~ 40k Feet Mean Sea Level
Chromate passivized aluminum enclosure, 168+ hours salt fog resistance.
Black zinc nickel coated connectors, 500+ hours salt fog resistance.
Debug
Additional daughter cards are supported via a mezzanine connector from the logic board. Supported communications to the processor are
bidirectional UART, SPI, and GPIO.
SMA sized connector (RF or pneumatic) through enclosure and internal printed circuit boards.
Chained JTAG to processor and FPGA
ARM parallel trace port to processor
Document Number and Reference Title
Allocortech can quickly provide low-cost custom hardware designs, customized versions of existing products, and integrate new hardware into existing designs. Where needed, requirements, test cases, simulators, and hardware-in-the-loop environments can be created.
