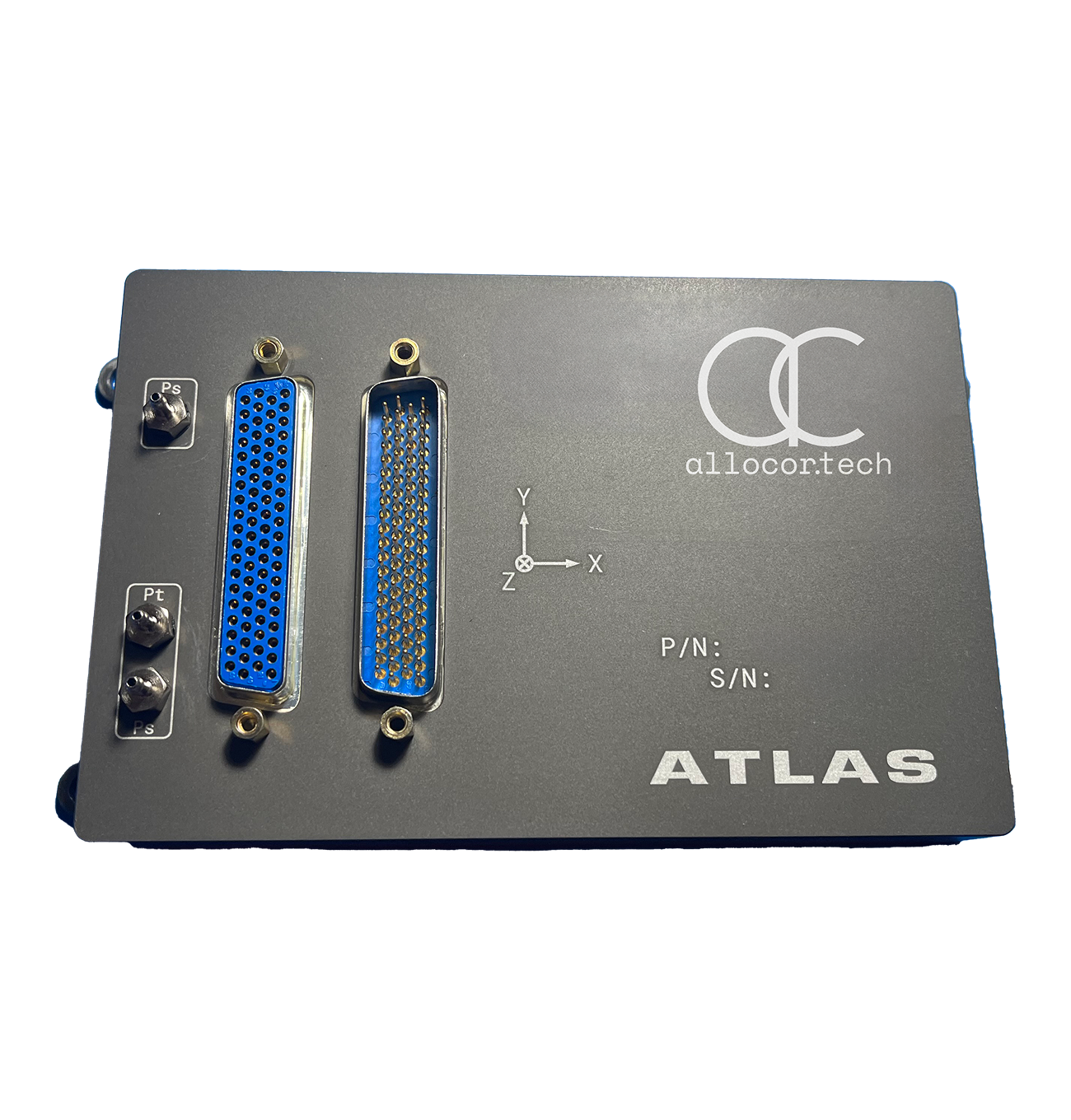

The Atlas Flight Computer is a low-cost flightcomputer solution based on the PixHawk PX4 FMUv6 open-source autopilot, It includes a missioncomputer, airdata sensors, ethernet switch, and optional internal GPS and INS.
Atlas Flight Computer enables autonomous operation in a highly integrated and ruggedized package.
Contact our top notch sales team to get all of your questions answered promptly!
Overview
The Atlas FMU is based on the open source Pixhawk FMUV6X standard, and is compatible with the PX4 autopilot software. With the same hardware, Atlas can run Allocortech’s SDK, enabling highly customized flight control solutions.
With a wide variety of interfaces including RS232, RS422, CAN, Ethernet, PWM, and more, Atlas is able to integrate into a wide variety of systems and perform flight
and payload management.
Atlas’ mission computer is a Toradex Verdin System on Module (SoM) and runs Linux. It is able to execute more strenuous software than the FMU but does not interrupt the FMU’s autopilot processor with lower priority or less time sensitive tasks. This can include mission planning, communication with a ground station, payload management, and more.
Communication
2x CAN 2.0
4x RS-232
2x RS-422
Ports support a variety of fixed or programmable hardware termination, and fixed or programmable duplex control.
2 external 10/100 ports from an internal managed Ethernet switch. Switch supports Auto-MDIX, VLANs, QoS, Rate Limiting, IGMP Snooping,
1 external 1 GB port
2x to 6x outputs
2x inputs
12x to 16x PWM out
6x input
Physical
386g
Length: 3.82 inches
Width: 6.5 inches
Height: 1.36 inches
4x 0.22″ diameter mounting holes
1x counter sunk electrical bonding stud
Custom base plates for mounting and electrical bonding are possible.
Power
9 ~ 36V typical
Less than 3.5 Watts typical
2x regulated 5V, 500mA output
2x nominal 28V, 2A output
Environmental
Allocortech products are designed to meet, but not necessarily formally qualified to, various DO-160 criteria. For more information, including any test lab certification, please contact us.
IP64
DO-160G Category R
-5k ~ 40k Feet Mean Sea Level
Chromate passivized aluminum enclosure, 168+ hours salt fog resistance.
Black zinc nickel coated connectors, 500+ hours salt fog resistance.
Document Number and Reference Title
Allocortech can quickly provide low-cost custom hardware designs, customized versions of existing products, and integrate new hardware into existing designs. Where needed, requirements, test cases, simulators, and hardware-in-the-loop environments can be created.
